ASPIRATOR

In Stock Unavailable

CategoryFiLTRE ASPiRATION DEPARTMENT

Contact

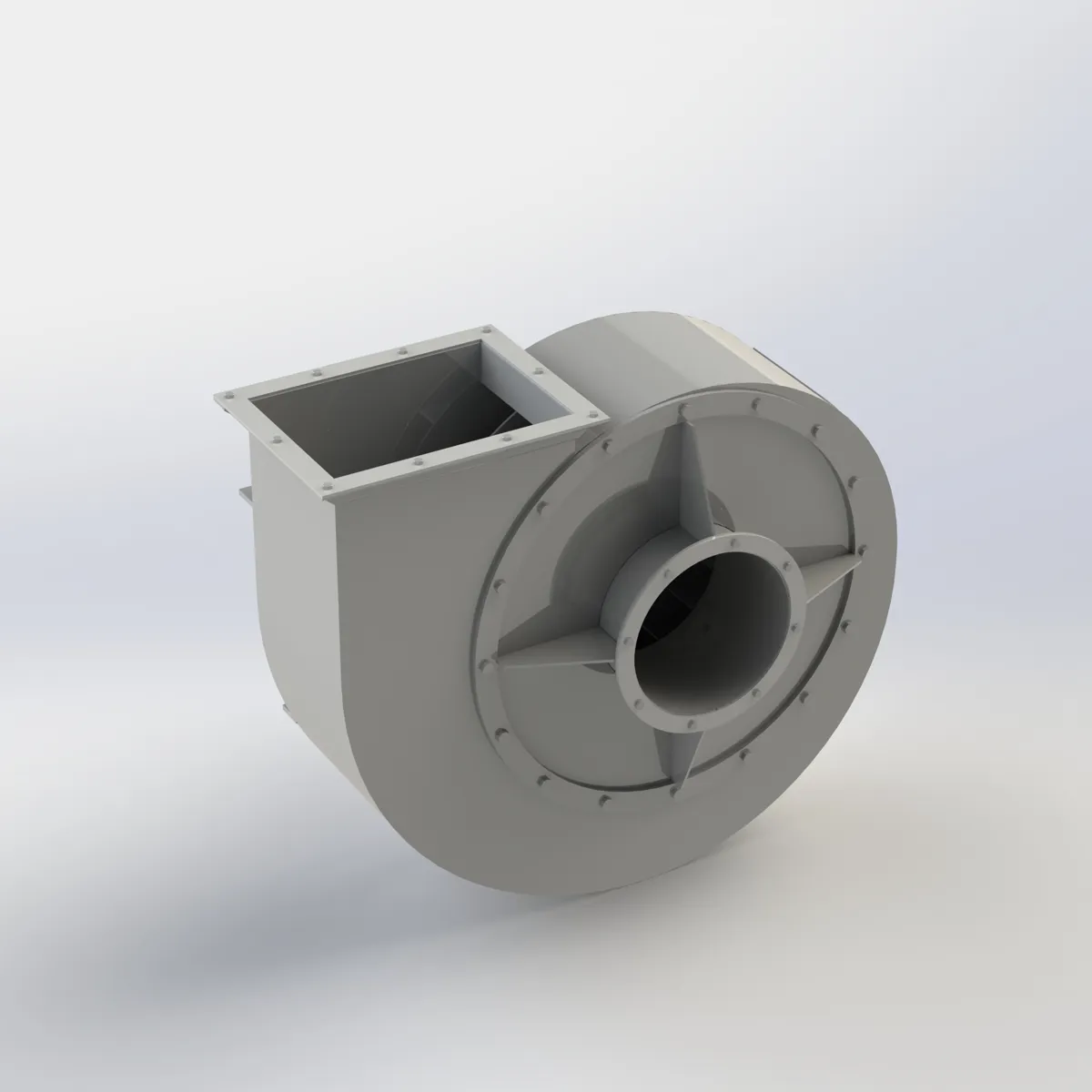

Aspirator provides low pressure in conveying systems and grain cleaning machines in grain processing plants to prevent grain dust leakage. The machine collects dust, chaff and light substances from the wheat with the air flow it creates inside and sends it to the dust cyclone or filter. The fan blades rotating with the power coming from the electric motor create the required suction flow rate.
We have fans with different capacities with different motor powers according to the needs. Thanks to their aerodynamic and robust structure, they provide an efficient working environment with minimum energy.
TIPMachine Dimensions (mm)MOTOR KWDK
ABCDE
END / ASP 3400 x 250Ø26081090066031500
END / ASP 5,5400 x 300Ø30011501150108010809105,51500
END / ASP 7,5400 x 300Ø300115010809107,51500
END / ASP 11450 x 400Ø4001270122012201230111500
END / ASP 15450 x 400Ø4001270122012201230151500
END / ASP 22550 x 550Ø500150016001350221500
END / ASP 30700 x 600Ø580165018701550301500
